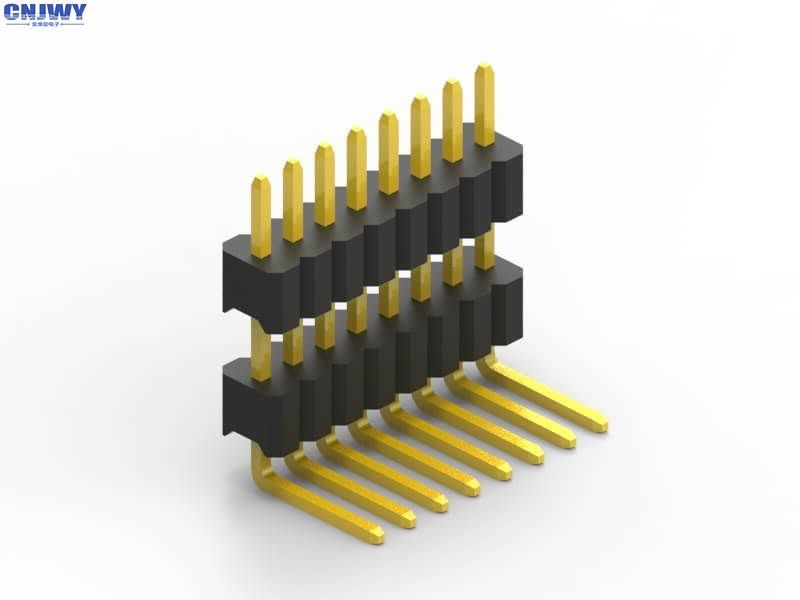

500V AC/DC PCB Header Connector With Insulation Resistance of 1000MΩ Min and Solder Termination for PCB Assembly Plants

Product Description:

With a focus on safety and quality, this connector has obtained multiple certifications including UL, SGS, RoHs, and REACH. These certifications ensure that the product meets strict industry standards and guidelines, giving you peace of mind when using it in your projects.

The insulation material used in this connector is PA6T UL 94-V0, known for its excellent thermal and electrical properties. This material provides reliable insulation and protection for the connector, enhancing its durability and longevity.

Designed for easy installation, this connector features a mounting type of SMD/SMT, allowing for convenient and secure mounting on the PCB. The SMD/SMT mounting type ensures a stable connection that can withstand various environmental conditions and mechanical stresses.

When it comes to termination, this connector is equipped with solder termination, providing a reliable and durable connection between the connector and the PCB. The solder termination ensures a strong bond that can withstand repeated use and vibrations, ensuring a stable and long-lasting connection.

The contact shape of this connector is square pin, offering a secure and stable connection for your electronic devices. The square pin shape ensures proper alignment and contact with the mating connector, reducing the risk of signal interference and ensuring smooth data transmission.

Whether you are working on a project that requires a Cable Joint Connector, Female PCB Connector, or Cable Joint Connector, this PCB Header Connector is the perfect choice. Its high-quality construction, certifications, insulation material, mounting type, termination, and contact shape make it a reliable and versatile component for various electronic applications.

Features:

• Product Name: PCB Header Connector
• Number of Row: Dual Row
• Contact Material: Copper Alloy
• Pin Available: 2 Pins To 40 Pins
• Insulation Resistance: 1000MΩ Min
• Withstand Voltage: 500V AC/DC

Technical Parameters:

Applications:

JWY PCB Header Connector, model number ST127-XXXXXX, is a versatile and reliable electronic component suitable for a wide range of product application occasions and scenarios. This high-quality connector is designed to meet the demanding requirements of various industries and applications, making it an essential choice for electronics manufacturers.

Manufactured in China, the JWY PCB Header Connector is certified by UL, SGS, RoHs, and REACH, ensuring compliance with international quality and safety standards. Its insulation material, PA6T UL 94-V0, provides excellent protection and durability, making it ideal for use in Half Hole PCB designs.

With a pitch of 1.00mm (0.039'') and a current rating of 1.0AMP, this Box Header Connector offers reliable electrical connections for your PCB designs. The connector's compact size and robust construction make it suitable for various electronic devices and equipment.

Customers can benefit from JWY's competitive pricing, with negotiable rates for bulk orders starting at a minimum quantity of 2Kpcs. Payment terms include T/T and Western Union, providing flexibility for procurement processes.

Thanks to JWY's supply ability of 100,000pcs per day, customers can rely on consistent availability of the PCB Header Connector to meet their production needs. The fast delivery time of 7 to 15 working days ensures quick turnaround times for urgent orders.

The PCB Header Connector is packaged using PE/Tray/Tube/Tape/Reel packaging, offering convenience and protection during transportation and storage. Whether you are designing consumer electronics, industrial equipment, or automotive systems, the JWY PCB Header Connector is a reliable choice for your connectivity needs.

Support and Services:

Our Product Technical Support and Services for the PCB Header Connector include:

- Assistance with product installation and configuration

- Troubleshooting guidance for any technical issues

- Product documentation and user manuals

- Warranty information and support

Packing and Shipping:

Product Packaging:

The PCB Header Connector is carefully packaged in a protective anti-static bag to prevent any damage during transportation. It is then placed in a sturdy cardboard box with ample cushioning to ensure safe delivery.

Shipping:

Orders for the PCB Header Connector are typically shipped within 1-2 business days after payment is received. We use reliable shipping carriers to deliver the product to your specified address. You will receive a tracking number once the order is shipped so you can monitor its progress.

FAQ:

Q: What is the brand name of the PCB Header Connector?

A: The brand name is JWY.

Q: What is the model number of the PCB Header Connector?

A: The model number is ST127-XXXXXX.

Q: Where is the PCB Header Connector manufactured?

A: The PCB Header Connector is manufactured in China.

Q: What certifications does the PCB Header Connector have?

A: The PCB Header Connector is certified by UL, SGS, RoHs, and REACH.

Q: What is the minimum order quantity for the PCB Header Connector?

A: The minimum order quantity is 2Kpcs.
